Global Standard QCM
BTQ QCM
SENSOR SPEC
SIZE
12.5 phi (mm) / 14 phi (mm)
TYPE
5MHz / 6MHz
CRYSTAL CUT
AT cut / SC cut ( High temperature )
RESONANCE MODE
Fundamental
FREQUENCY
4.985 - 5.000 MHz / 5.980 - 6.000MHz
RR
~ 15 ohm
Electrode
Alloy / Gold
Shape
Plano / Convex ( Full or Patterned Electrode )
Packing
10 pcs ( Antistatic Vacuum Sealing )
SPEC
PRODUCT
PRODUCT

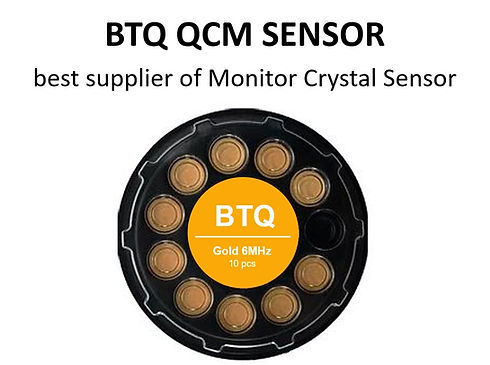

BTQ 6M Gold Sensor
$ 2~2.5
BTQ 6M Alloy Sensor
$ 2~2.5
BTQ 5M Gold Sensor
$ 2~2.5
BTQ 5M Alloy Sensor
$ 2~2.5
